Hydraulic Face Drilling Machine
Product Details:
Product Description

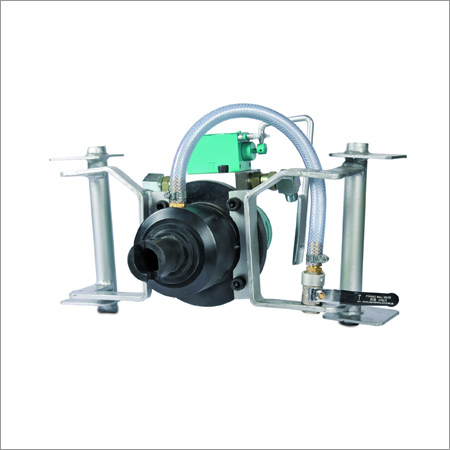

Radiant Hydraulic Face Drilling Pack
RADIANT Hydraulic Face Drilling Machines (with Dust Suppression System) have been developed with an idea to achieve Wet Drilling on Coal Faces to avoid fatigue from coal dust to the operators. It is faster than any other conventional Drilling Machines & is also suitable for Drifting application in Sand Stone with compressive strength upto 600 kg/cm2 & Bolting purposes as well where angular/horizontal Drilling is required.
Salient Features
- Low noise, silent operation.
- Easy maintenance & lowest service cost.
- Portable, light in weight, very easy to handle.
- No electric connection required to be taken upto the face.
- Water injection system helps in flushing cuttings, dust suppression & faster drilling.
- Unique drive head design eliminates thrust load being transferred directly to the motor.
- Can be used in various applications like Face Drilling, Drifting, Angular Drilling etc.
Technical Specifications
| MODEL | RMTL-HFD-1800 |
| Operating Pressure (bar) | 70 to 100 |
| Rotation Speed (rpm) | 400 to 600 |
| Chuck Option (mm) | 22 Hex / Spiral |
| Drilling Dia (mm) | 27 to 43 |
| Water Flow (Lpm) | 55 |
| Medium | DGMS Recommended Hydraulic Oil |
| Noise Level dB(A) | Below 70 |
| Approx. Weight (Kgs.) | 12 to 14 |
